Tuesday, April 3, 2018

Some interesting April Fools' Day 2018 Technology Jokes

This year April Fools' Day wasn't as fun as the last one. Couple of reasons being that it was on a Sunday and it coincided with Easter Sunday. Here are some of the jokes that I found interesting.

Sprint's Magic Ball:

It was good to see that the US mobile operator joined the party this year. Their magicball (based on their highly successful Magic Box) advert was really good. Here is the video:



Good to see that they managed to squeeze in references to 5G and small cells

Official site: http://newsroom.sprint.com/sprint-magic-ball.htm


T-Mobile Sidekicks Re-booted:


T-Mobile USA has consistently come up with the best tech pranks. Last year they had the OneSie with Human HotSpot and BingeOnUp the year before. This year the re-booted sidekicks was the joke of the day. The video is embedded below. As the description says, T-Mobile’s Sidekick gets a remake! Inspired by the past but stepping boldly into the future, it has revolutionary AI, headphones that double as chargers, personalized GPS guidance by John Legere, and more!



Official site: https://www.t-mobile.com/offers/sidekicks


The Chegg Osmosis Pillow:


"A top-secret team of Chegg engineers from Zurich spent two years developing a new patent-pending revolutionary proprietary method of making memory foam using special blends of matcha and lavender. Thanks to their discoveries, Chegg’s memory foam actually improves your memory. Got a final exam tomorrow? Sleep on it. Got a lab report due? Sleep on it. Need to outline your entire thesis? Sleep on it."

Official Website: https://www.chegg.com/play/memory-foam-pillow/


Pindrop TonguePrinting:


"Tongueprinting technology analyzes thousands of tiny bumps called papillae, as well as factors such as shape, size, and temperature to accurately identify yourself by licking your phone. This technology will be the mouthpiece of Pindrop’s latest authentication and anti-fraud solutions." Video:


Official website: https://www.pindrop.com/resources/video/video/tongueprinting/


Roku Happy Streaming Socks: "Do messy snack hands keep you from using your Roku remote? Meet the new Roku Happy Streaming Socks with built-in motion sensors, plus toe-toasting and anti-loss technology."


Official Website: https://blog.roku.com/roku-happy-streaming-socks


The other jokes were, well, not very funny but here are some worth mentioning...

Virgin Voyages Wa-Fi: "Here at Virgin Voyages we are excited to be bringing underwater WiFi, or as we call it “Wa-Fi” service, to all Virgin Voyages ships." Website: https://www.virginvoyages.com/wa-fi.html

Logitech BS Detection Software: "Today, I’m proud to announce that we are taking video calls to a whole new level with the introduction of Logitech Business Speak (BS) Detection software. Logitech BS Detection revolutionizes our meeting capabilities with built-in artificial intelligence (AI) that flags the…well…BS in business communications. "

Website: https://blog.logitech.com/2018/03/30/logitech-revolutionizes-business-communication-with-the-introduction-of-business-speak-detection-software/

Josh Ultra by Josh.Aihttps://www.cepro.com/article/josh.ai_josh_ultra_premium_voice_control

Jabra Sneakershttps://www.jabra.com/jabra-sneakers


Genetic Select by Lexus: Introducing Genetic Select by Lexus in partnership with 23andMe. The world’s first service that uses human genetics to match you with the car of your genes. http://www.lexus.com/geneticselect/

Google Maps is adding a Where’s Waldo? mini-game for the next week: Link.

Google Japan's Gboardhttps://japan.googleblog.com/2018/04/tegaki.html

Google Cloud Hummus API - Find your Hummus!: https://www.youtube.com/watch?v=0_5X6N6DHyk

Tech21 Flexichoc casehttps://twitter.com/Tech21Official/status/979392283106824192

Audi Downsizing Assistanthttps://twitter.com/AudiOfficial/status/979991696657203201

Lego VacuSorthttps://twitter.com/LEGO_Group/status/980369210789507072

Did I miss any good ones?


Related Posts:

Monday, May 1, 2017

Variety of 3GPP IoT technologies and Market Status - May 2017



I have seen many people wondering if so many different types of IoT technologies are needed, 3GPP or otherwise. The story behind that is that for many years 3GPP did not focus too much on creating an IoT variant of the standards. Their hope was that users will make use of LTE Cat 1 for IoT and then later on they created LTE Cat 0 (see here and here).

The problem with this approach was that the market was ripe for a solution to a different types of IoT technologies that 3GPP could not satisfy. The table below is just an indication of the different types of technologies, but there are many others not listed in here.


The most popular IoT (or M2M) technology to date is the humble 2G GSM/GPRS. Couple of weeks back Vodafone announced that it has reached a milestone of 50 million IoT connections worldwide. They are also adding roughly 1 million new connections every month. The majority of these are GSM/GPRS.

Different operators have been assessing their strategy for IoT devices. Some operators have either switched off or are planning to switch off they 2G networks. Others have a long term plan for 2G networks and would rather switch off their 3G networks to refarm the spectrum to more efficient 4G. A small chunk of 2G on the other hand would be a good option for voice & existing IoT devices with small amount of data transfer.

In fact this is one of the reasons that in Release-13 GSM is being enhanced for IoT. This new version is known as Extended Coverage – GSM – Internet of Things (EC-GSM-IoT ). According to GSMA, "It is based on eGPRS and designed as a high capacity, long range, low energy and low complexity cellular system for IoT communications. The optimisations made in EC-GSM-IoT that need to be made to existing GSM networks can be made as a software upgrade, ensuring coverage and accelerated time to-market. Battery life of up to 10 years can be supported for a wide range use cases."

The most popular of the non-3GPP IoT technologies are Sigfox and LoRa. Both these technologies have gained significant ground and many backers in the market. This, along with the gap in the market and the need for low power IoT technologies that transfer just a little amount of data and has a long battery life motivated 3GPP to create new IoT technologies that were standardised as part of Rel-13 and are being further enhanced in Rel-14. A summary of these technologies can be seen below


If you look at the first picture on the top (modified from Qualcomm's original here), you will see that these different IoT technologies, 3GPP or otherwise address different needs. No wonder many operators are using the unlicensed LPWA IoT technologies as a starting point, hoping to complement them by 3GPP technologies when ready.

Finally, looks like there is a difference in understanding of standards between Ericsson and Huawei and as a result their implementation is incompatible. Hopefully this will be sorted out soon.


Market Status:

Telefonica has publicly said that Sigfox is the best way forward for the time being. No news about any 3GPP IoT technologies.

Orange has rolled out LoRa network but has said that when NB-IoT is ready, they will switch the customers on to that.

KPN deployed LoRa throughout the Netherlands thereby making it the first country across the world with complete coverage. Haven't ruled out NB-IoT when available.

SK Telecom completed nationwide LoRa IoT network deployment in South Korea last year. It sees LTE-M and LoRa as Its 'Two Main IoT Pillars'.

Deutsche Telekom has rolled out NarrowBand-IoT (NB-IoT) Network across eight countries in Europe (Germany, the Netherlands, Greece, Poland, Hungary, Austria, Slovakia, Croatia)

Vodafone is fully committed to NB-IoT. Their network is already operational in Spain and will be launching in Ireland and Netherlands later on this year.

Telecom Italia is in process of launching NB-IoT. Water meters in Turin are already sending their readings using NB-IoT.

China Telecom, in conjunction with Shenzhen Water and Huawei launched 'World's First' Commercial NB-IoT-based Smart Water Project on World Water Day.

SoftBank is deploying LTE-M (Cat-M1) and NB-IoT networks nationwide, powered by Ericsson.

Orange Belgium plans to roll-out nationwide NB-IoT & LTE-M IoT Networks in 2017

China Mobile is committed to 3GPP based IoT technologies. It has conducted outdoor trials of NB-IoT with Huawei and ZTE and is also trialing LTE-M with Ericsson and Qualcomm.

Verizon has launched Industry’s first LTE-M Nationwide IoT Network.

AT&T will be launching LTE-M network later on this year in US as well as Mexico.

Sprint said it plans to deploy LTE Cat 1 technology in support of the Internet of Things (IoT) across its network by the end of July.

Further reading:

Sunday, March 12, 2017

High Power / Performance User Equipment (#HPUE)

3GPP refers to HPUE as High Power UE while the US operator Sprint prefers to use the term High Performance UE.

HPUE was initially defined for US Public Safety Band 14 (700MHz). The intention was that this high power UEs can increase the coverage range from 4km to 8km. This would mean larger coverage areas and less number of cells.

While the commercial UE's (class 3) transmit at +23dBm (max 200mW), the Public Safety people intend to use class 1 UE transmitting +31 dBm (max 1.25W). It was felt that this feature could be beneficial for some TDD bands that do not have to worry about backward compatibility. One such band, pushed by Sprint was TDD Band 41 (2500MHz). As this band is for the commercial UE's, instead of class 1, class 2 power at +26dBm (max 400mW) was proposed.

3GPP TS 36.886 provides the following justification:

Currently, 3GPP has defined only Power Class UE 3 as the type of UE supported for TDD LTE band 41 operations. This definition was based on aligning TDD LTE Band 41 UE power classes with prior work in 3GPP related to other bands. However, it should be mentioned that 3GPP UE Power Class 3 definition (i.e. 23dBm) was mainly driven to ensure backward compatibility with prior technologies (i.e. GSM/UMTS) [2] so that network deployment topologies remain similar. Furthermore, maintaining the same power class UE definition (i.e. Class 3) as previous technologies would maintaining compliance with various national regulatory rulings, particularly in terms of SAR, for FDD LTE duplexing mode.

However, TDD LTE band 41 does not have any 3GPP legacy technologies associated with it, hence the backward compatibility consideration is not applicable in its case. Also, since band 41 is defined as a TDD LTE band, it is less susceptible to SAR levels that FDD LTE bands due to SAR definition. Therefore, defining a new UE power class with higher than 23dBm Tx power for TDD LTE Band 41 operations would not compromise any of 3GPP foundational work, while improving UE and network performance. It should also be mentioned that 3GPP has done similar work on other bands (i.e. band 14) when defining a higher power class UE, hence the concept presented in this document is a continuation of that process.

The present document carries out a feasibility analysis for defining a UE Power class 2 (i.e. 26dBm) for operation on TDD LTE band 41. The document analyses current and future technological advancements in the area of UE RF front-end components and architectures that enable such definition while maintaining 3GPP specification and other regulatory bodies' requirements. It should be emphasized that this proposal only relates to single carrier UL operations on TDD band 41 (i.e. TM-1/2 modes) without affecting current 3GPP definition for UL carrier aggregation on band 41.

As you can see from the tweet above, Sprint CEO is quite pleased with the HPUE.

SourceDiana Goovaerts

Iain Gillott, iGR points out that HPUE applies to Sprint’s 2.5 GHz TDD network and associated spectrum, and the company claims up to 30 percent increase in cell cover from the new technology.  It should be noted that HPUE is a 3GPP standard that applies to the 2.5 GHz TDD band (Band 41) and is also to be used by China Mobile and Softbank.  HPUE was developed as part of the Global TDD LTE Initiative (GTI) which includes Qualcomm Technologies, Samsung, ZTE, Broadcom, MediaTek, Skyworks Solutions, Alcatel, Motorola, LG and Qorvo... The cool part: the improvement in coverage comes from simply improving the device uplink power.  So Sprint, China Mobile and Softbank will not have to visit their cell sites to make changes; they just need 2.5 GHz TDD devices with HPUE to get the benefit.


Milan Milanović recently wrote about Sprint’s Gigabit Class LTE network goes live in New Orleans. One of the questions I had was why is the uplink so rubbish as compared to downlink. He kindly pointed out to me that this is TDD config 2
If you are wondering what is TDD Config 2, see the pic below
Source: ShareTechNote

Sprint expects HPUE to appear in postpaid devices starting in 2017, including new devices from Samsung, LG, HTC, and Moto. It’s expected that all of Sprint’s new devices will have HPUE support within the next two years.

I think it would be interesting to see how this impacts when there are a lot more users and devices. I am quite sure there will be more requests for HPUE in further TDD bands.

Related Links:

Monday, January 16, 2017

Gigabit LTE?


Last year Qualcomm announced the X16 LTE modem that was capable of up to 1Gbps, category 16 in DL and Cat 13 (150 Mbps) in UL. See my last post on UE categories here.


Early January, it announced Snapdragon 835 at CES that looks impressive. Android central says "On the connectivity side of things, there's the Snapdragon X16 LTE modem, which enables Category 16 LTE download speeds that go up to one gigabit per second. For uploads, there's a Category 13 modem that lets you upload at 150MB/sec. For Wi-Fi, Qualcomm is offering an integrated 2x2 802.11ac Wave-2 solution along with an 802.11ad multi-gigabit Wi-Fi module that tops out at 4.6Gb/sec. The 835 will consume up to 60% less power while on Wi-Fi."

Technology purists would know that LTE, which is widely referred to as 4G, was in fact pre-4G or as some preferred to call it, 3.9G. New UE categories were introduced in Rel-10 to make LTE into LTE-Advanced with top speeds of 3Gbps. This way, the ITU requirements for a technology to be considered 4G (IMT-Advanced) was satisfied.


LTE-A was already Gigabit capable in theory but in practice we had been seeing peak speeds of up to 600Mbps until recently. With this off my chest, lets look at what announcements are being made. Before that, you may want to revisit what 4.5G or LTE-Advanced Pro is here.

  • Qualcomm, Telstra, Ericsson and NETGEAR Announce World’s First Gigabit Class LTE Mobile Device and Gigabit-Ready Network. Gigabit Class LTE download speeds are achieved through a combination of 3x carrier aggregation, 4x4 MIMO on two aggregated carriers plus 2x2 MIMO on the third carrier, and 256-QAM higher order modulation.
  • TIM in Italy is the first in Europe to launch 4.5G up to 500 Mbps in Rome, Palermo and Sanremo
  • Telenet in partnership with ZTE have achieved a download speed of 1.3 Gbps during a demonstration of the ZTE 4.5G new technology. That's four times faster than 4G's maximum download speed. Telenet is the first in Europe to reach this speed in real-life circumstances. 4.5G ZTE technology uses 4x4 MIMO beaming, 3-carrier aggregation, and a QAM 256 modulation.
  • AT&T said, "The continued deployment of our 4G LTE-Advanced network remains essential to laying the foundation for our evolution to 5G. In fact, we expect to begin reaching peak theoretical speeds of up to 1 Gbps at some cell sites in 2017. We will continue to densify our wireless network this year through the deployment of small cells and the use of technologies like carrier aggregation, which increases peak data speeds. We’re currently deploying three-way carrier aggregation in select areas, and plan to introduce four-way carrier aggregation as well as LTE-License Assisted Access (LAA) this year."
  • T-Mobile USA nearly reached a Gigabit and here is what they say, "we reached nearly 1 Gbps (979 Mbps) on our LTE network in our lab thanks to a combination of three carrier aggregation, 4x4 MIMO and 256 QAM (and an un-released handset)."
  • The other US operator Sprint expects to unveil some of its work with 256-QAM and massive MIMO on Sprint’s licensed spectrum that pushes the 1 gbps speed boundary. It’s unclear whether this will include an actual deployment of the technology

So we are going to see a lot of higher speed LTE this year and yes we can call it Gigabit LTE but lets not forget that the criteria for a technology to be real '4G' was that it should be able to do 1Gbps in both DL and UL. Sadly, the UL part is still not going Gigabit anytime soon.

Sunday, June 14, 2015

Using 8T8R Antennas for TD-LTE


People often ask at various conferences if TD-LTE is a fad or is it something that will continue to exist along with the FDD networks. TDD networks were a bit tricky to implement in the past due to the necessity for the whole network to be time synchronised to make sure there is no interference. Also, if there was another TDD network in an adjacent band, it would have to be time synchronised with the first network too. In the areas bordering another country where they might have had their own TDD network in this band, it would have to be time synchronised too. This complexity meant that most networks were happy to live with FDD networks.

In 5G networks, at higher frequencies it would also make much more sense to use TDD to estimate the channel accurately. This is because the same channel would be used in downlink and uplink so the downlink channel can be estimated accurately based on the uplink channel condition. Due to small transmit time intervals (TTI's), these channel condition estimation would be quite good. Another advantage of this is that the beam could be formed and directed exactly at the user and it would appear as a null to other users.

This is where 8T8R or 8 Transmit and 8 Receive antennas in the base station can help. The more the antennas, the better and narrower the beam they can create. This can help send more energy to users at the cell edge and hence provide better and more reliable coverage there.

SONWav Operator Solution

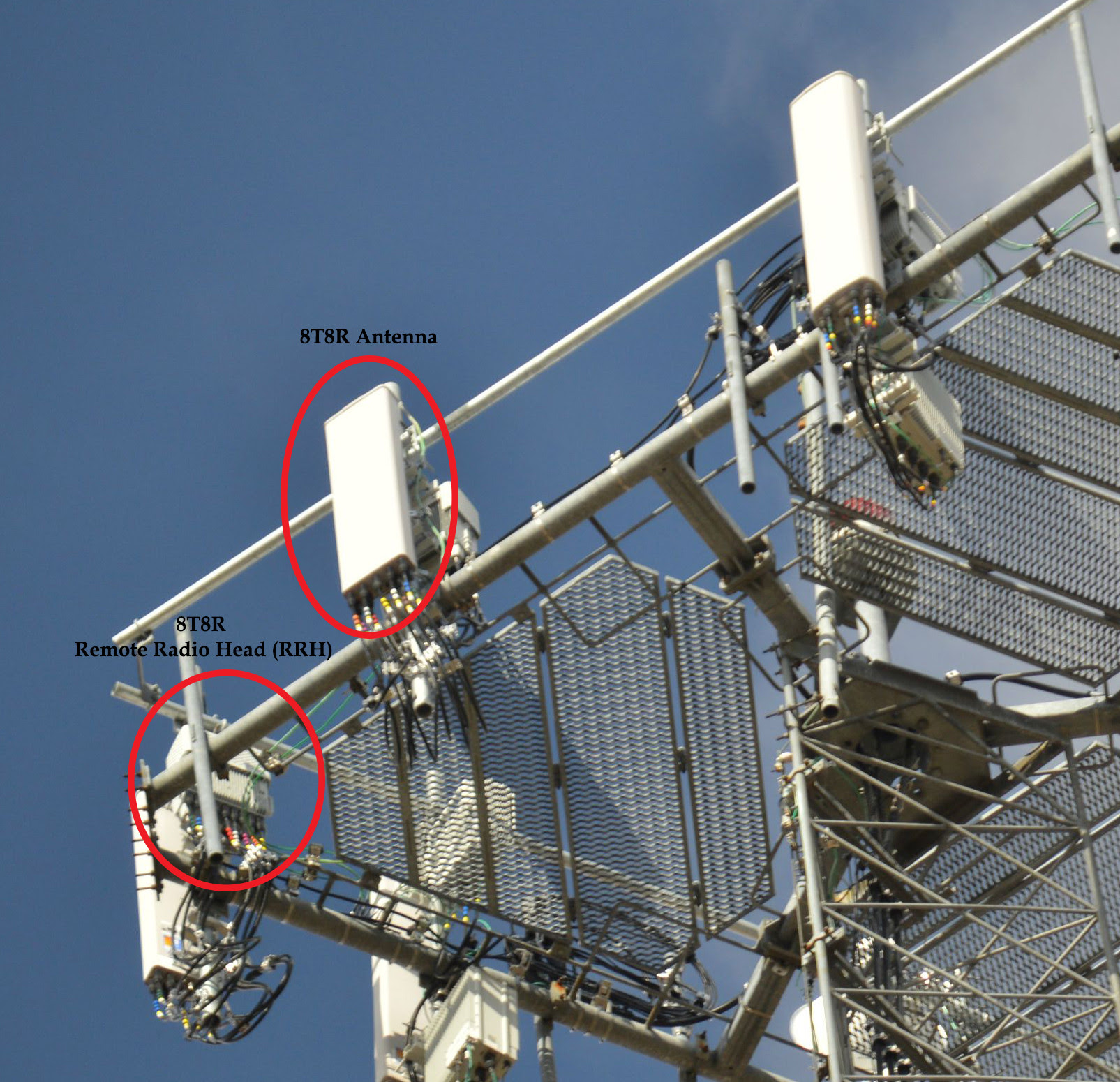

How do these antennas look like? 8T8R needs 8x Antennas at the Base Station Cell, and this is typically delivered using four X-Polar columns about half wavelength apart. I found the above picture on antenna specialist Quintel's page here, where the four column example is shown right. At spectrum bands such as 2.3GHz, 2.6GHz and 3.5GHz where TD-LTE networks are currently deployed, the antenna width is still practical. Quintel’s webpage also indicates how their technology allows 8T8R to be effectively emulated using only two X-Polar columns thus promising Slimline antenna solutions at lower frequency bands. China Mobile and Huawei have claimed to be the first ones to deploy these four X-Pol column 8T8R antennas. Sprint, USA is another network that has been actively deploying these 8T8R antennas.

There are couple of interesting tweets that show their kit below:

In fact Sprint has very ambitious plans. The following is from a report in Fierce Wireless:

Sprint's deployment of 8T8R (eight-branch transmit and eight-branch receive) radios in its 2.5 GHz TDD LTE spectrum is resulting in increased data throughput as well as coverage according to a new report from Signals Research. "Thanks to TM8 [transmission mode 8] and 8T8R, we observed meaningful increases in coverage and spectral efficiency, not to mention overall device throughput," Signals said in its executive summary of the report.

The firm said it extensively tested Sprint's network in the Chicago market using Band 41 (2.5 GHz) and Band 25 (1.9 GHz) in April using Accuver's drive test tools and two Galaxy Note Edge smartphones. Signals tested TM8 vs. non-TM8 performance, Band 41 and Band 25 coverage and performance as well as 8T8R receive vs. 2T2R coverage/performance and stand-alone carrier aggregation.

Sprint has been deploying 8T8R radios in its 2.5 GHz footprint, which the company has said will allow its cell sites to send multiple data streams, achieve better signal strength and increase data throughput and coverage without requiring more bandwidth.

The company also has said it will use carrier aggregation technology to combine TD-LTE and FDD-LTE transmission across all of its spectrum bands. In its fourth quarter 2014 earnings call with investors in February, Sprint CEO Marcelo Claure said implementing carrier aggregation across all Sprint spectrum bands means Sprint eventually will be able to deploy 1900 MHz FDD-LTE for uplink and 2.5 GHz TD-LTE for downlink, and ultimately improve the coverage of 2.5 GHz LTE to levels that its 1900 MHz spectrum currently achieves. Carrier aggregation, which is the most well-known and widely used technique of the LTE Advanced standard, bonds together disparate bands of spectrum to create wider channels and produce more capacity and faster speeds.

Alcatel-Lucent has a good article in their TECHzine, an extract from that below:

Field tests on base stations equipped with beamforming and 8T8R technologies confirm the sustainability of the solution. Operators can make the most of transmission (Tx) and receiving (Rx) diversity by adding in Tx and Rx paths at the eNodeB level, and beamforming delivers a direct impact on uplink and downlink performance at the cell edge.

By using 8 receiver paths instead of 2, cell range is increased by a factor of 1.5 – and this difference is emphasized by the fact that the number of sites needed is reduced by nearly 50 per cent. Furthermore, using the beamforming approach in transmission mode generates a specific beam per user which improves the quality of the signal received by the end-user’s device, or user equipment (UE). In fact, steering the radiated energy in a specific direction can reduce interference and improves the radio link, helping enable a better throughput. The orientation of the beam is decided by shifting the phases of the Tx paths based on signal feedback from the UE. This approach can deliver double the cell edge downlink throughput and can increase global average throughput by 65 per cent.

These types of deployments are made possible by using innovative radio heads and antenna solutions.  In traditional deployments, it would require the installation of multiple remote radio heads (RRH) and multiple antennas at the site to reach the same level of performance. The use of an 8T8R RRH and a smart antenna array, comprising 4 cross-polar antennas in a radome, means an 8T8R sector deployment can be done within the same footprint as traditional systems.



Anyone interested in seeing pictures of different 8T8R antennas like the one above, see here. While this page shows Samsung's antennas, you can navigate to equipment from other vendors.

Finally, if you can provide any additional info or feel there is something incorrect, please feel free to let me know via comments below.

Saturday, August 9, 2014

Multi-Frequency Band Indicator (MFBI)

I am sure we all know that LTE bands have been growing, every few months. All the 32 bands for FDD have now been defined. The 33rd band is where TDD bands start. What if we now want to have more FDD bands? Well, we will have to wait to fix that problem.

Picture Source: LG Space

Anyway, as can be seen in the above picture, some of the frequency bands overlap with each other. Now you may have a UE thats camped onto one frequency that is overlapping in different bands. Wouldn't it be useful to let the UE know that you are camped in more than one band and you can change it to another frequency which may be a different band but you were already on it in the first place (it may sound confusing).

Here is a much simpler table from the specs that show that when a UE is camped on band 5, it may also be camped on bands 18, 19 and 26. Remember the complete bands may not be overlapping but may only be partially overlapping.

An example could be Sprint that used Band 38 TDD (BW 50MHz) for its legacy devices but is now able to use Band 41 (BW 194MHz) as well. The legacy devices may not work on Band 41 but the new devices can use much wider band 41. So the transmission would still say Band 38 but the new devices can be informed of Band 41 using the System Information Block Type 1. AT&T has a similar problem with Band 12 and 17.

Even though this was implemented in Release-8, it came as a part of Late Non-critical extensions. Its a release independent feature but not all UE's and Network have implemented it. The UE indicates the support for MFBI using the FGI (Feature Group Indicator) bits.

Tuesday, October 30, 2012

Quick summary of the 'Operator Mindshare' session from Small Cells Global Congress



We had quite a few interesting discussions in the Small Cells Global Congress, Operator Mindshare session. Here are some of the things that were discussed:

Licensed v/s Unlicensed deployments:
Many operators are now deploying WiFi in the unlicensed spectrum. This can help in the short term to alleviate the capacity problems but as more and more of this unlicensed spectrum nodes get deployed, they create interference between each other and make them unusable for anyone. An example was provided about Tokyo where in some areas, too many free WiFi hotspots means its unusable for anyone. One solution is to have one operator do all the logistics for the deployment and other operators can pay to use the service. Who (operator) would be the first one to go through the process of deploying everything first? Everyone would prefer wait and watch approach.

Providing free WiFi:
The consensus was that the free WiFi provided by operators don't give any additional benefit to them and there isn't much of a business case.

Consumer awareness for residential Femtocells:
Globally, not much effort is being done by the operator to make the end users aware of residential Femtocells and this is hampering the take-up  A point was made about when Vodafone launched their product, Vodafone Access Gateway (VAG), it was perceived as negative thing because the ads show that if the coverage was poor you can install this to improve coverage. From a users perspective, it showed that the network had poor coverage. Still consumer awareness is important, how to do it?

Placement of Small Cells:
Where should the public small cells (metrocells) be placed. The Biggest challenges are:
* Site Acquisition is the biggest problem. - This is a bigger problem if lap posts are sought to deploy on public locations
* Rent
* Planning
* Installation
* Power - Lamp posts are centrally switched off, so small cells on laamp posts may need alternative sources
* Power meter if used in a shared location
* Bullet proof (especially in the US)
* Backhaul - especially is non line of sight case.
* Health concerns (if visible)
* Visual appearance
* Opex

Backhaul:
Operators should be clearer in what they want. Right now the vendors are pushing the solutions that operators not necessarily need and not giving what the operators want. The Backhaul should be more flexible and future proof. It should be able to cater for upcoming technologies like Carrier Aggregation, CoMP, etc.

Shared v/s Dedicated carrier for 3G Small Cells:
Dedicated carrier is ideal but is not easily possible for most operators. When shared carrier is used it causes interference and handovers are not easy.

Interoperability in the new hardware equipment for support of small cells:
Certain vendors are still not creating the the networks that can interwork with other vendors equipment. As we are moving towards LTE, this seems to be a much bigger problem. Sprint for example has 3 completely different networks in the US with no interoperability between them. Standards are not helping either as they do not dictate implementation.


Some Interesting discussions on Case studies, Business Cases, etc.



Mosaic Telecom:
* Deployed residential Femtocells
* Deployed for coverage purpose
* Dont have handover capability yet
* Want to be able to deploy Microcells/Small Cells on Highways, around 1-2Km radius
* Their typical Microcells use 40W output power
* The cost of deployment if Macro using cabinet, antenna, etc is roughly 100K per site.

Telefonica, O2 trials in UK
* To get access to council lamp posts, it was required that the bidder offer free WiFi
* O2 set a high bar by paying lot of money to the councils in London, but this is not a sustainable model

A Business case for carrier neutral WiFi on light pole in Lima, Peru
* Each light pole can have 3 different locations
* The retail business case is to get the user to usse the offering and maybe offer the operator services, tempting to move to this operator from current one
* There can be a wholesale case of selling the WiFi capacity in bulk to companies, organisations

Some interesting statistics thrown up:
* WiFi cell radius is 30m in South America
* 83% of people in US think that operators should provide free WiFi because of lousy coverage of the mobile network.
* The first 4000 customers of a WiMax operator were using an average of 750 MB per day, 22.5GB per month.
* Some fixed Internet operators are now thinking of putting a cap on unlimited offering at 350GB per month.


There were no consensus and conclusions for many items so feel free to write your opinion in the comments.

Wednesday, May 23, 2012

#LTEWS: Highlights and Pictures of Signalling day from 8th LTE World Summit



I got a chance to attend the 'Handling the Surge in Signalling Traffic Focus day' at the LTE World Summit. In fact I got this opportunity through Diametriq, who were the sponsors of this event and were kind enough to provide me a free pass :) As a result, they get a little plug below.




We got off to a flying start with an Introduction to the need of Signaling followed by a brilliant presentation by Martin Pineiro from Telecom Personal, Argentina.


This was the only presentation that looked at the Access Network Signalling. All other presentations focussed on Diameter signaling. Telecom Personal have 4 carriers, 1 is used for 3G and other 3 for GSM.


Above is their revenue share for different services. The data services really took off for them when they offered a flat rate if 1 peso per day for unlimited data.


Their average dongle data consumption is 2GB/month and average smartphone is 200MB/month.


They do have a simple definition of Smartphone, which is a device that produces 10+ packet connections per day. The device that is most popular in their network is Motorola and Apple devices produce highest data load but their comparison of devices from different manufacturers showed they all produced similar signalling traffic.

One final point highlighted was that OS & Apps are not part of test and certification so we should get better understanding of that to help avoid signalling overload in future.

Ron de Lange from Tekelec was up next:


Interesting to hear that they are 40 year old company with 300+ customers in 100+ countries.



There is a shift coming in the usage plans with multi access roaming. Some sessions will go over WiFi and some over the mobile network. Plans with OTT allowance are already here and will be more common. There may be opportunity for end users to earn allowance as part of loyalty scheme. The main thing for operator to think is how to get a revenue share from advertisement.



Diameter 2.0 is coming. The signalling storms, if not handled properly can cause disruption (congestion) internationally, if the interconnect is not handled properly.

Next up was Ben Volkow, F5 Traffix:

Today we use Diameter 1.0, tomorrow it would be Diameter 2.0. Diamater 2.0 us "nervous system" approach.


Diamater is much less predictable than SS7 but this could be because of Immaturity of Diameter.


Real networks like the one above is out in the field. An example of n/w is one with 140 point to point connections.


DRA (Diameter Routing Agent) is a new topology introduced by 3GPP and DEA (Diameter Edge Agent) was introduced by GSMA.


The network does not want to spend million of dollars in one go so they start by deploying individual components first and then depending on the use cases this scales up as they add more components.

Next up was the Panel Discussion:


Key points:
  • Diameter is first protocol that has dedicated vendors offering monetisation of protocol as well
  • Early operators would have deployed Diameter 1.0 so they can evolve by putting DRA for one use case and so on.
  • When operators want to monetise using diameter, the signalling problems may become worse
  • Adding VoLTE may increase Diameter Signalling by 3 times
  • What is meant by monetisation of Diamater is that in SS7, the focus was on reliability, etc. but in Diameter, the operators can leverage PCRF and as a result monetisation. A new use case can also be a OTT proxy that can leverage advertisement revenue.
  • The forecast for Diameter is couple of 100 million for this year and growing. There are many components including Router, Roaming, Charging, Security, Interconnect capability, Aggregating relationships with small carriers and OTT service providers, etc.


Next up was Marjan Mursec of Telecom Slovenia

Some interesting facts from them is that they have a public WLAN n/w, GSM with EDGE as fallback and have rolled out HD voice. Their Data usage surpasses voice and Voice and SMS is still growing as can be seen below.



Above shows the data usage increase after they rolled out all you can eat package. They were then forced to introduce fair usage policy.

Their upgrade paths include RAN, Core, Backhaul.


They think they have a big signalling challenge over S1-MME interface. One wrong configured user is sending 4 requests/second. 12,500 users can be enough to reach congestion (ZG: Maybe they should look at PDP Context Parking). Over the S1-U interface, Narrowband users can send 50 packets/sec. 40,000 users at 13.6kbps can saturate the network and the routers will be overloaded.

Next up was Ajay Joseph from iBasis:


Interesting to see that GRX is a service in IPX above.


I think the main point of above is that Diameter by itself is not enough and a mechanism like IPX is required for roaming scenario.


For LTE a new service called LTE Signalling exchange (LSX) can be created within IPX. iBasis has just launched Sandbox for testing Roaming, Charging, Interoperability, etc.

Will LSX bring the roaming costs down? Its operators call but it does provide a foundation and in the next 2-3 years, data roaming costs should come down dramatically.

It should be noted that GRX is an IP network without QoS. Its a service within IPX. Security is also a service within IPX and GSMA based compliance should be there for proper and secure interoperability.

Voice over IPX is not of much interest, especially because there is no return of investment and HD voice cant be send over IP.

Next up was Douglas Ranalli from NetNumber:

His slides are self explanatory




One question during Q&A was, why not put this functionality in the cloud and avoid complexity of having another physical box in the system. The answer was that CDRB is implemented to be compliant with cloud deployment but operators have not yet taken this step. The customers are deploying physical boxes but shared infrastructure would be much more efficient.

Next up was Doug Alston from Sprint:



Next up was Anjan Ghosal from Diametriq:






Everyone is talking about LTE-LTE roaming but there is a need for LTE-3G and LTE-2G so some translation may be required between Diameter and SS7.


Diametriq provides a single platform for signalling between any service (2G/3G/4G) and possibility to enhance.

Next up was another Panel Discussion:


One observation is made is that as compared to the ITM Optimisation event, where the operators were more worried about the OTT players eroding revenues, the focus here was that how Diameter can help monetise the OTT services,

Next up was Edward Gubbins from Current Analysis:




The Final presentation was from Julius Mueller from Fraunhofer FOKUS:




As usual, Dimitris Mavrakis was up to the mark and chaired the whole day very well.

To end an enjoyable day even better, iBasis invited the attendees for drinks on the Hilton Terrace, which is next to CCIB and complemented the drinks with some delicious Tapas as can be seen below :)






E&OE. In case if have misheard, misquoted, etc. please feel free to correct me via comments in this post.

For all the action from LTE World Summit for the next 2 days, please follow twitter #LTEWS.

Please let me know by using the voting buttons below if you found it useful or not.
