Quick Recap of MIMO in LTE and LTE-Advanced

I had earlier put up some MIMO presentations that were too technical heavy so this one is less heavy and more figures.

The following is from NTT Docomo Technical journal (with my edits):

MIMO: A signal transmission technology that uses multiple antennas at both the transmitter and receiver to perform spatial multiplexing and improve communication quality and spectral efficiency.

Spectral efficiency: The number of data bits that can be transmitted per unit time and unit frequency band.

In this blog we will first look at MIMO in LTE (Release 8/9) and then in LTE-Advanced (Release-10)

MIMO IN LTE

Downlink MIMO Technology

Single-User MIMO (SU-MIMO) was used for the downlink for LTE Rel. 8 to increase the peak data rate. The target data rates of over 100 Mbit/s were achieved by using a 20 MHz transmission bandwidth, 2 × 2 MIMO, and 64 Quadrature Amplitude Modulation (64QAM), and peak data rates of over 300 Mbit/s can be achieved using 4×4 SU-MIMO. The multi-antenna technology used for the downlink in LTE Rel. 8 is classified into the following three types.

1) Closed-loop SU-MIMO and Transmit Diversity: For closed-loop SU-MIMO transmission on the downlink, precoding is applied to the data carried on the Physical Downlink Shared Channel (PDSCH) in order to increase the received Signal to Interference plus Noise power Ratio (SINR). This is done by setting different transmit antenna weights for each transmission layer (stream) using channel information fed back from the UE. The ideal transmit antenna weights for precoding are generated from eigenvector(s) of the covariance matrix of the channel matrix, H, given by HHH, where H denotes the Hermitian transpose.

However, methods which directly feed back estimated channel state information or precoding weights without quantization are not practical in terms of the required control signaling overhead. Thus, LTE Rel. 8 uses codebook-based precoding, in which the best precoding weights among a set of predetermined precoding matrix candidates (a codebook) is selected to maximize the total throughput on all layers after precoding, and the index of this matrix (the Precoding Matrix Indicator (PMI)) is fed back to the base station (eNode B) (Figure 1).


LTE Rel. 8 adopts frequency-selective precoding, in which precoding weights are selected independently for each sub-band of bandwidth from 360 kHz to 1.44 MHz, as well as wideband precoding, with single precoding weights that are applied to the whole transmission band. The channel estimation used for demodulation and selection of the precoding weight matrix on the UE is done using a cell specific Reference Signal (RS) transmitted from each antenna. Accordingly, the specifications require the eNode B to notify the UE of the precoding weight information used for PDSCH transmission through the Physical Downlink Control Channel (PDCCH), and the UE to use this information for demodulation.

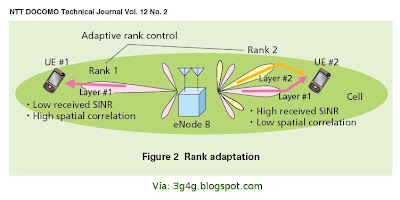

LTE Rel. 8 also adopts rank adaptation, which adaptively controls the number of transmission layers (the rank) according to channel conditions, such as the received SINR and fading correlation between antennas (Figure 2). Each UE feeds back a Channel Quality Indicator (CQI), a Rank Indicator (RI) specifying the optimal rank, and the PMI described earlier, and the eNode B adaptively controls the number of layers transmitted to each UE based on this information.

2) Open-loop SU-MIMO and Transmit Diversity: Precoding with closed-loop control is effective in low mobility environments, but control delay results in less accurate channel tracking ability in high mobility environments. The use of open-loop MIMO transmission for the PDSCH, without requiring feedback of channel information, is effective in such cases. Rank adaptation is used, as in the case of closed-loop MIMO, but rank-one transmission corresponds to open-loop transmit diversity. Specifically, Space-Frequency Block Code (SFBC) is used with two transmit antennas, and a combination of SFBC and Frequency Switched Transmit Diversity (FSTD) (hereinafter referred to as “SFBC+FSTD”) is used with four transmit antennas. This is because, compared to other transmit diversity schemes such as Cyclic Delay Diversity (CDD), SFBC and SFBC+FSTD achieve higher diversity gain, irrespective of fading correlation between antennas, and achieve the lowest required received SINR. On the other hand, for PDSCH transmission with rank of two or higher, fixed precoding is used regardless of channel variations. In this case, cyclic shift is performed before applying the precoding weights, which effectively switches precoding weights in the frequency domain, thereby averaging the received SINR is over layers.

3) Adaptive Beamforming: Adaptive beamforming uses antenna elements with a narrow antenna spacing of about half the carrier wavelength and it has been studied for use with base stations with the antennas mounted in a high location. In this case beamforming is performed by exploiting the UE Direction of Arrival (DoA) or the channel covariance matrix estimated from the uplink, and the resulting transmit weights are not selected from a codebook. In LTE Rel. 8, a UE-specific RS is defined for channel estimation in order to support adaptive beamforming. Unlike the cell-specific RS, the UE specific RS is weighted with the same weights as the data signals sent to each UE, and hence there is no need to notify the UE of the precoding weights applied at the eNode B for demodulation at the UE. However, its effectiveness is limited in LTE Rel. 8 because only one layer per cell is supported, and it is an optional UE feature for Frequency Division Duplex (FDD).

Uplink MIMO Technology

On the uplink in LTE Rel. 8, only one-layer transmission was adopted in order to simplify the transmitter circuit configuration and reduce power consumption on the UE. This was done because the LTE Rel. 8 target peak data rate of 50 Mbit/s or more could be achieved by using a 20 MHz transmission bandwidth and 64QAM and without using SU-MIMO. However, Multi-User MIMO (MU-MIMO) can be used to increase system capacity on the LTE Rel. 8 uplink, using multiple receiver antennas on the eNode B. Specifically, the specification requires orthogonalization of the demodulation RSs from multiple UEs by assigning different cyclic shifts of a Constant Amplitude Zero Auto-Correlation (CAZAC) sequence to the demodulation RSs, so that user signals can be reliably separated at the eNode B. Demodulation RSs are used for channel estimation for the user-signal separation process.


MIMO TECHNOLOGY IN LTE-ADVANCED

Downlink 8-Layer SU-MIMO Technology

The target peak spectral efficiency in LTE-Advanced is 30 bit/s/Hz. To achieve this, high-order SU-MIMO with more antennas is necessary. Accordingly, it was agreed to extend the number of layers of SU-MIMO transmission in the LTE-Advanced downlink to a maximum of 8 layers. The number of transmission layers is selected by rank adaptation. The most significant issue with the radio interface in supporting up to 8 layers is the RS structure used for CQI measurements and PDSCH demodulation.

1) Channel State Information (CSI)-RS: For CQI measurements with up-to-8 antennas, new CSI-RSs are specified in addition to cell-specific RS defined in LTE Rel. 8 for up-to-four antennas. However, in order to maintain backward compatibility with LTE Rel. 8 in LTE-Advanced, LTE Rel. 8 UE must be supported in the same band as in that for LTE-Advanced. Therefore, in LTE Advanced, interference to the PDSCH of LTE Rel. 8 UE caused by supporting CSI-RS must be minimized. To achieve this, the CSI-RS are multiplexed over a longer period compared to the cell-specific RS, once every several subframes (Figure 3). This is because the channel estimation accuracy for CQI measurement is low compared to that for demodulation, and the required accuracy can be obtained as long as the CSIRS is sent about once per feedback cycle. A further reason for this is that LTE-Advanced, which offers higher data-rate services, will be developed to complement LTE Rel. 8, and is expected to be adopted mainly in low-mobility environments.


2) UE-specific RS: To allow demodulation of eight-layer SU-MIMO, the UE-specific RS were extended for SU-MIMO transmission, using a hybrid of Code Division Multiplexing (CDM) and Frequency Division Multiplexing (FDM) (Figure 4). The UE-specific RS pattern for each rank (number of layers) is shown in Figure 5. The configuration of the UE-specific RS in LTE-Advanced has also been optimized differently from those of LTE Rel.8, extending it for SU-MIMO as well as adaptive beamforming, such as by applying twodimensional time-frequency orthogonal CDM to the multiplexing between transmission layers.


Downlink MU-MIMO Technology

In addition to the peak data rate, the system capacity and cell-edge user throughput must also be increased in LTE-Advanced compared to LTE Rel. 8. MU-MIMO is an important technology for satisfying these requirements. With MU-MIMO and CoMP transmission (described earlier), various sophisticated signal processing techniques are applied at the eNode B to reduce the interference between transmission layers, including adaptive beam transmission (zero-forcing, block diagonalization, etc.), adaptive transmission power control and simultaneous multi-cell transmission. When these sophisticated transmission techniques are applied, the eNode B multiplexes the UE-specific RS described above with the PDSCH, allowing the UE to demodulate the PDSCH without using information about transmission technology applied by the eNode B. This increases flexibility in applying sophisticated transmission techniques on the downlink. On the other hand, PMI/CQI/RI feedback extensions are needed to apply these sophisticated transmission techniques, and this is currently being discussed actively at the 3GPP.

Uplink SU-MIMO Technology

To reduce the difference in peak data rates achievable on the uplink and downlink for LTE Rel. 8, a high target peak spectral efficiency of 15 bit/s/Hz was specified for the LTE-Advanced uplink. To achieve this, support for SU-MIMO with up to four transmission antennas was agreed upon. In particular, the two-transmission-antenna SU-MIMO function is required to satisfy the peak spectral efficiency requirements of IMT-Advanced.

For the Physical Uplink Shared Channel (PUSCH), it was agreed to apply SU-MIMO with closed-loop control using multiple antennas on the UE, as well as codebook-based precoding and rank adaptation, as used on the downlink. The eNode B selects the precoding weight from a codebook to maximize achievable performance (e.g., received SINR or user throughput after precoding) based on the sounding RS, which is used for measuring the quality of the channel transmitted by the UE. The eNode B notifies the UE of the selected precoding weight together with the resource allocation information used by the PDCCH. The precoding for rank one contributes to antenna gain, which is effective in increasing cell edge user throughput. However, considering control-information overhead and increases in Peak-to-Average Power Ratio (PAPR), frequency-selective precoding is not very effective in increasing system throughput, so only wideband precoding has been adopted.

Also, for rank two or higher, when four transmission antennas are used, the codebook has been designed not to increase the PAPR. The demodulation RS, which is used for channel estimation, is weighted with the same precoding weight as is used for the user data signal transmission. Basically, orthogonalization is achieved by applying a different cyclic shift to each layer, but orthogonalizing the code region using block spread together with this method is adopted.


Uplink Transmit Diversity Technology

Closed-loop transmit diversity is applied to PUSCH as described above for SU-MIMO. Application of transmit diversity to the Physical Uplink Control Channel (PUCCH) is also being studied. For sending retransmission request Acknowledgment (ACK) and Negative ACK (NAK) signals as well as scheduling request signals, application of Spatial Orthogonal-Resource Transmit Diversity (SORTD) using differing resource blocks per antenna or an orthogonalizing code sequence (cyclic shift, block spread sequence) has been agreed upon (Figure 6). However, with LTE-Advanced, the cell design must be done so that LTE Rel. 8 UE get the required quality at cell-edges, so applying transmit diversity to the control channels cannot contribute to increasing the coverage area, but only to reducing the transmission power required.
